Reality-Based Welding Training System

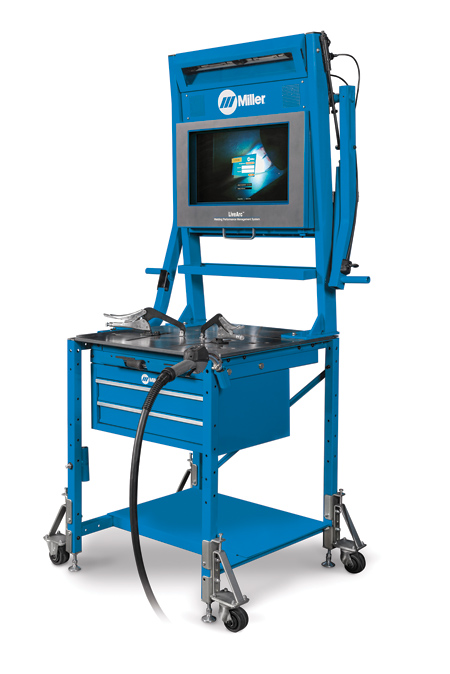

The LiveArc reality-based training system is available with a welding positioning arm for training in out-of-position applications.

The LiveArc reality-based training system is designed to recruit, screen, train and manage welding trainee performance - all via a live welding arc.

Miller Electric Mfg. Co.'s LiveArc reality-based training system is designed to recruit, screen, train and manage welding trainee performance - all via a live welding arc. The LiveArc system includes advanced motion-tracking technology that provides students with immediate feedback to help them advance their welding skills.

By offering objective, quantitative feedback on key performance parameters, the system promotes trainee independence and learning, and allows users to gain the proficiency needed for skilled welding opportunities. The pre-weld simulation mode saves money for supplies (e.g., weld coupons, gas, wire) and provides a sound welding technique baseline for accelerating training when live arc welding occurs.

"For those looking to build a better workforce, whether it is in a vocational school or manufacturing company, the LiveArc Welding Performance Management System provides a solution," said Rich Thompson, VP Marketing, Miller. "We know how critical it is to refine the abilities of both beginning and experienced welders to meet the demand for skilled welders in the industry."

Featuring an easy-to-use touchscreen monitor, the LiveArc system guides the welding trainee from assignment selection to simulated welding practice - and when he or she is ready, the trainee can engage in live arc welding. The system includes Miller-designed assignments, and allows welding instructors to easily develop additional assignments with customized parameters for specific weld joints and positions.

The LiveArc system is available with a welding positioning arm for training in out-of-position applications. "With this option, instructors can expand assignments beyond flat/horizontal welding parameters, empowering students to master more advanced welding skills, first in simulation mode and then with a live arc," said a company spokesperson.

An industry-exclusive, 400-amp SmartGun features built-in LEDs that the system's camera tracks in order to provide feedback on technique parameters, including work and travel angles, contact tip-to-work-distance (CTWD), travel speed and aim. The gun's OLED display screen provides initial feedback to guide the trainee in proper gun position, and integrated pushbuttons act as a convenient alternative to touchscreen navigation. A joint calibration tool informs the system of the joint location, which allows the user to place the weld coupon in nearly any position.

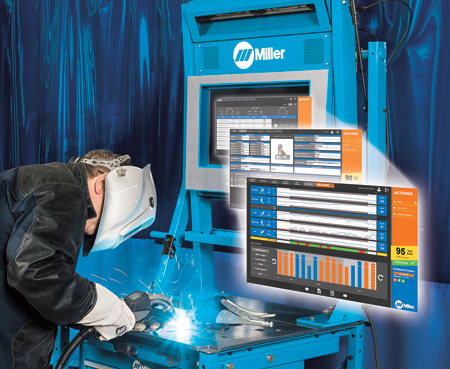

To provide trainees with a learning curve, the LiveArc system's intuitive user interface features graphical icons and instructional pop-up messages. The assignment selection screen displays the list of available assignments and offers assignment completion status, a history summary of each assignment and access to detailed data about performance history. A Welding Procedure Specification (WPS) review screen informs the trainee of proper material selection and preparation, correct power source and wire feeder settings and target welding technique parameter values. This screen also displays the instructor-determined target score and assignment completion criteria.

After both simulation and weld mode tests, a feedback screen provides trainees with graphical and numerical data as a means to improve individual performance. This screen also provides instructors with monitoring and evaluation capabilities to help build basic welding technique skill sets.

Miller has also made free software upgrades available to augment the instruction interface and provides separate PC software that allows instructors to review student performance, add assignments and make changes to existing assignments.

The system is designed to be robust and safe. The touchscreen monitor works with a gloved hand, and a protective monitor cover disables the power source when opened. The SmartGun trigger also deactivates in simulation mode, preventing accidental live arc welding; the user must intentionally activate the weld mode in order to weld.

The LiveArc system is compatible with any welding system that is capable of producing gas metal arc welding (GMAW), pulsed gas metal arc welding (GMAW-P), short circuiting gas metal arc welding (GMAW-S), and gas shielded flux-cored arc welding (FCAW-G). It is positioned on a rugged ArcStation base that ships complete with drawers, gun holder, quick-release clamps and heavy-duty casters to simplify movement.

For more information contact:

Miller Electric Mfg. Co.

P.O. Box 100

Lithonia, GA 30058

800-426-4553

info@millerwelds.com

www.millerwelds.com
