5 kV Insulation Resistance Tester

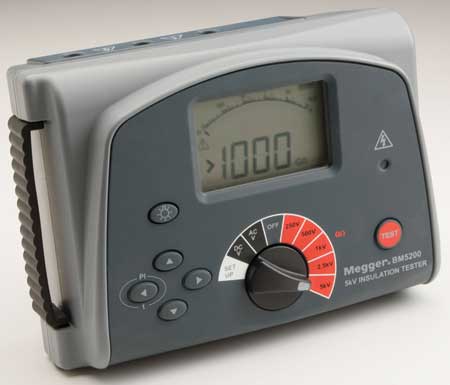

Megger, a manufacturer and supplier of test equipment and measuring instruments for electrical power applications, offers a rugged and compact, battery-powered 5 kV digital insulation resistance tester designed for high voltage testing. The BM5200 is designed for use in the maintenance, electrical manufacturing, railway/railroad, industrial/manufacturing and raw materials processing industries.

"Rated to CAT III 600 V, the BM5200 provides greater user safety when testing in high voltage environments as well as a cost-effective solution for technicians working on three phase equipment. Additional safety features include a high voltage warning indicator, an external voltage display after IR test, automatic discharge of reactive loads and high quality test leads," said a company spokesperson.

The digital IR tester features five preset test voltages ranging from 250 V to 5,000 V and has a maximum resistance range of 1 teraohm. The unit is designed for measurement without damaging the insulation.

The BM5200 is fully automatic and features multiple operating modes including insulation, polarization index and varied timed test. A single rotary switch makes operation of the tester easy.

According to the company, the unit features a user settable insulation resistance test timer with a range to 20 minutes, selectable DC or AC voltmeter functions ranging from 25 V to 600 V and a guard terminal that minimizes surface leakage current. The BM5200 has a rating of IP40 and features a backlit LCD display for easy viewing under all lighting conditions.

Technical Specifications

  • Rated to CAT III 600 V
  • Five preset test voltages ranging from 250 V to 5,000 V
  • Maximum resistance range of 1 teraohm
  • 1.4 mA test current
  • IP40 rated.

For more information contact:

Megger

4271 Bronze Way

Dallas, TX 75237

800-723-2861

peg.houck@megger.com

www.megger.com
