Productivity at Any Level

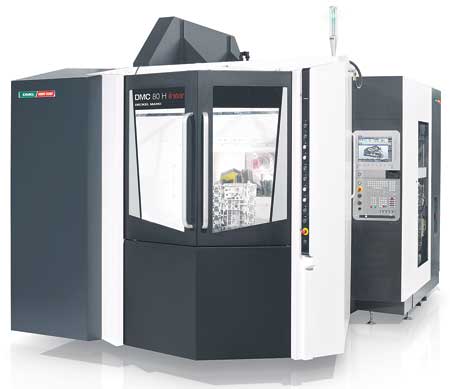

DMG / Mori Seiki offers the DMC 80 H linear in a variety of versions, and is now available with an HSK-A100 tool taper and 430 Nm spindle. According to the company, linear drives, an intelligent tool magazine and extensive use of a modular building block system offer productive machine solutions whatever the variant.

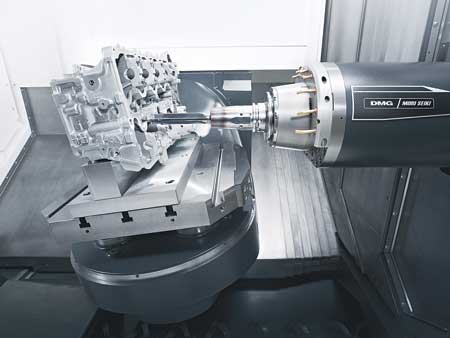

"The DMC 80 H linear can be utilized for the production of classic components in the job shop sector as well as the machining of motor and gearbox components for the automotive industry," said a company spokesperson. "The travel ranges of the machines are ideal for the machining of the crankcases and cylinder heads of v-engines and serial six-cylinder engines. It is also suited for applications in the hydraulic industry and security sectors."

The 630 x 630 clamping surface can accommodate workpieces with a diameter up to 1,000 mm. Workpieces with a maximum height of 900 mm and a maximum weight of 600 kg can be machined on the 5-axis version equipped with a swivel rotary table. With the standard NC rotary table, workpieces up to 1,100 mm and 900 kg may be accommodated. The standard pallet changer features an overall footprint of 19 m2.

In addition to the standard 12,000 RPM spindle (20 kW, 110 Nm), an 18,000 RPM motor spindle and an HSK-A100 spindle with 430 Nm for heavy-duty machining are available.

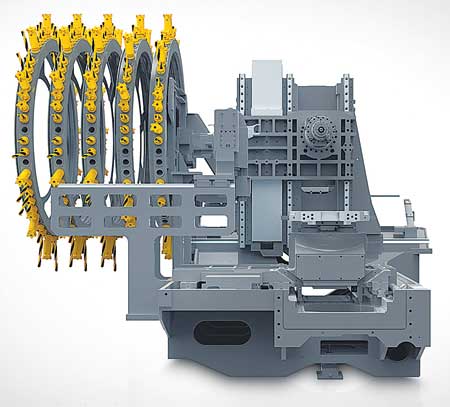

There is space for 40 tools in the standard version of the HSK-A63 machine. Up to 363 tool pockets are possible if additional wheels are added. Chip-to-chip time is 2.6 seconds. Equipped with the large HSK-A100 tool interface, the magazine can take up 243 tools in its most extensive version. Both expansion options can accommodate tools with a length of up to 650 mm.

The X, Y and Z axes utilize linear technology. Rapid traverses of up to 80 m/min offer fast machining speeds, and the 0.8 g acceleration provides dynamics. Linear drives, motor spindle and rotary table are cooled. The linear drives are all located outside of the work area, so they have no thermal impact during machining.

One-piece vertical steel covers provide chip disposal, while steep chip guide plates allowing unobstructed flow through the machine bed enable direct connection to a central chip disposal system. A centrally located spiral conveyor transports the chips to the rear of the machine.

A Siemens 840D solutionline offers operators a variety of programming possibilities and is integrated in the SLIMline panel with 15" screen.
